PL40 Light Tower

PL40 Light Tower

Bobcat's PL40 lighting system is powered by a single-cylinder, air-cooled Yanmar engine, providing over 200 hours of operation on a single fill. The 7-meter mast can withstand wind speeds of up to 105 km/hr. The system comes with energy-efficient LED technology for an extended lifespan and minimal power requirements, while its compact design guarantees hassle-free shipping.

Features

Specifications

Compare

Key Specifications

Continuous Running Hours
226 hrs
210 hrs
Working Speed
3000 rpm
3000 rpm
Engine
Yanmar - L48V5
Yanmar - L48V5
Light Source
LED
LED

Key Specifications

Continuous Running Hours
226 hrs
210 hrs
Working Speed
3000 rpm
3000 rpm
Engine
Yanmar - L48V5
Yanmar - L48V5
Light Source
LED
LED

Engine

Make
Yanmar
Yanmar
Model
L48V5
L48V5
Power Rating
3.7 (2.76) hp (kW)
3.7 (2.76) hp (kW)
Number of Cylinders
1
1
Working Speed
3000 rpm
3000 rpm
Cooling System
Air Cooled
Air Cooled
Fuel tank capacity
31 (118) US gal (L)
31 (118) US gal (L)
Total wattage
800 W
1200 W
Continuous Running Hours
226
210

Alternator

Rating
2,2 kVA
2,2 kVA
Voltage
230 V
230 V
Frequency
50 Hz
50 Hz

Electrical System

Battery Rating
12V 45Ah
12V 45Ah

Dimensions With Running Gear

Length
2910 (114.5) mm (in)
2910 (114.5) mm (in)
Width
1445 (56.8) mm (in)
1445 (56.8) mm (in)
Height
2696 (106) mm (in)
2696 (106) mm (in)
Shipping Weight
506 (1116) kg (lbs)
518 (1142) kg (lbs)

Similar Machines

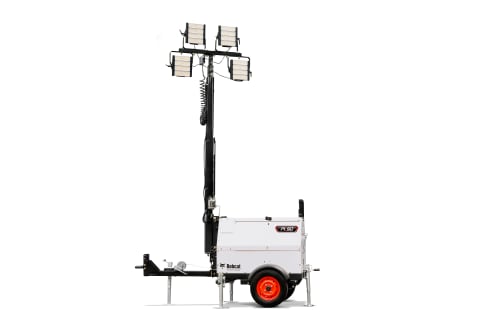

  • PL50 Light Tower PL50 Light Tower
