PL51 Light Tower

PL51 Light Tower

Bobcat's PL51 model features a robust Mitsubishi engine and is available with both metal halide or LED lights. Standing tall at 9 meters, it can withstand wind speeds of up to 105 km/hr. With a sleek, compact design, a 103-liter fuel tank, and a decades-long legacy of customer preference, it remains the epitome of reliability and quality.

Features

Specifications

Compare

Key Specifications

Continuous Running Hours
130 hrs
104 hrs
61 hrs
Working Speed
1500 rpm
1500 rpm
1500 rpm
Engine
Mitsubishi - L2E
Mitsubishi - L3E
Mitsubishi - L3E
Light Source
LED
LED
Metal Halide

Key Specifications

Continuous Running Hours
130 hrs
104 hrs
61 hrs
Working Speed
1500 rpm
1500 rpm
1500 rpm
Engine
Mitsubishi - L2E
Mitsubishi - L3E
Mitsubishi - L3E
Light Source
LED
LED
Metal Halide

Engine

Make
Mitsubishi
Mitsubishi
Mitsubishi
Model
L2E
L3E
L3E
Power Rating
6.4 (4.5) hp (kW)
8.4 (6.2) hp (kW)
8.4 (6.2) hp (kW)
Number of Cylinders
2
3
3
Working Speed
1500 rpm
1500 rpm
1500 rpm
Cooling System
Liquid
Liquid
Liquid
Fuel tank Capacity
27.4 (104) US gal (L)
27.4 (104) US gal (L)
27.4 (104) US gal (L)
Total wattage
1200 W
1200 W
4000 W
Continuous Running Hours
130 hrs
104 hrs
61 hrs

Electrical System

Battery Rating
12V 85Ah
12V 85Ah
12V 85Ah

Dimensions With Running Gear

Length
4300 (169.2) mm (in)
4300 (169.2) mm (in)
4430 (171) mm (in)
Width
1260 (49.6) mm (in)
1260 (49.6) mm (in)
1440 (56.6) mm (in)
Height
1690 (66.5) mm (in)
1690 (66.5) mm (in)
1730 (68.1) mm (in)
Shipping Weight
638 (1406) kg (lbs)
700 (1543) kg (lbs)
700 (1543) kg (lbs)

Alternator

Rating
-
-
5 kVA
Voltage
-
-
230 V
Frequency
-
-
50 Hz

Similar Machines

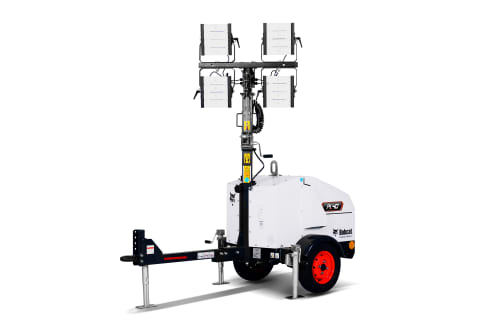

  • PL40 Light Tower PL40 Light Tower
