T35.105L Construction Telehandler
T35.105L Construction Telehandler
The Bobcat R-Series T35.105L Telehandler offers a 10-meter boom without stabilizers for all your construction needs. The machine offers a great balance between maneuverability and performance, and the levelling feature brings outstanding stability.
T35.105L Overview
T35.105L components are well protected thanks to the shielded design, while the robust frame and boom make Bobcat Telehandlers extra tough. Handle daily tasks with a familiar, intuitive automotive-style layout and an all-in-one joystick with improved ergonomics. The smooth and automatic transmission offers surgical precision and maximum uptime with a standard 3-year warranty (or 3000 hours) on the entire machine for peace of mind.
The T35.105L is available in the following configurations: 75 hp and 100 hp. Please contact your nearest dealer for more information.
T35.105L Specifications
Compare
Key Specifications
T35.105L Construction Telehandler
Rated Capacity
3500 kg
Lifting height
10.3 m
Rated power (ISO 14396)
74 kW
Max reach
6.9 m
Unladen weight
7110 kg
Load Charts
T35.105L Construction Telehandler
With forks and DUNLOP 400/80 x 24 156B (option) tyres
Complies with stability test EN1459 Annex B
With forks and DUNLOP 405/70 x 20 SPT9 (option) tyres
Complies with stability test EN1459 Annex B
With forks and standard 405/70 x 20 tyres or DUNLOP 400/70 x 20 150B 168A2 (option) tyres
Complies with stability test EN1459 Annex B
Performance
T35.105L Construction Telehandler
Drawbar pull (24" tyres)
4900.00
Max. reach on stabilizers (24" tyres)
6795.00 MM
Reach at max height on tyres (20" tyres)
1480.00 MM
Capacity at max. reach (24" tyres)
600.00 KG
Tilt Breakout force
7800.00
Drawbar pull (20" tyres)
5700.00
Max. reach (20" tyres)
6886.00 MM
Max. gradeability (20" tyres)
33.00
Max. gradeability with rated load (20" tyres)
32.00
Capacity (at max. height on tyres)
2500.00 KG
Reach at max height on tyres (24" tyres)
1389.00 MM
Rated capacity
3500.00 KG
Max. reach on stabilizers (20" tyres)
6886.00 MM
Lifting height (24" tyres)
10375.00 MM
Max. gradeability with rated load (24" tyres)
26.00
Lifting height (20" tyres)
10290.00 MM
Leveling - Boom lift angle > 50°
2.00
Max. gradeability (24" tyres)
33.00
Max. reach (24" tyres)
6795.00 MM
Capacity at max. reach (20" tyres)
600.00 KG
Cycle Times
T35.105L Construction Telehandler
Boom lowering
6.00
Boom retraction
7.00
Boom raising
11.00
Boom extension
11.50
Dumping
4.00
Crowding
4.50
Hydraulic System
T35.105L Construction Telehandler
Pump capacity
100.00
Hydraulic tank
69.00 L
Pump type
Gear pump with LS valve
Control valve type
Open center with flow sharing & flow compensators technology
Auxiliary flow front
65.00
Relief valve pressure setting
250.00 BAR
Hydraulic filter specs
Full flow filtration
Drive System
T35.105L Construction Telehandler
Main drive
Hydrostatic motor
Transmission
Hydrostatic with electronic regulation
Traction
T35.105L Construction Telehandler
Optional tyres
DUNLOP 405/70R24 168A2
152J MPT SPT9
Max speed - turtle mode (24" / 20")
8,5 / 7
Max speed - rabbit mode (24" / 20")
30 / 26
Standard tyres
405/70-20 16PR TM R4
Brakes
T35.105L Construction Telehandler
Parking brake
Passive brake
Engine braking
Hydrostatic
Parking and emergency brake
Passive brake
Steering
T35.105L Construction Telehandler
Steering modes
Button and screen for selection
Steering pump
Priority valve on pump
Steering Mode
2 wheel steering / 4 wheel steering / Crab-steering
Fluid Capacities
T35.105L Construction Telehandler
Engine oil with filter
12.60 L
Fuel tank
130.00 L
Adblue ® tank
22.40 L
Gear Box
0.80 L
Cooling system with heater
14.50 L
Axles front/rear
8,2/9,1
Hydraulic system
121.00 L
Fluid Specifications
T35.105L Construction Telehandler
Hydraulic fluid
MS68
Brake fluid
None. Brakes use hydraulic system pressure
Transmission oil
ELF SF3 / TOTAL DYNATRANS FR
Grease for hinges and boom gliders
TOTAL MULTIS EP2
Coolant
Ethylen Glycol Mix 50:88
Engine oil
"ACEA E7/9 API CJ-4 or above Viscosity: -30 to 40 °C : SAE 0W30 -20 to 40°C : SAE 5W30 -15 to 40°C : SAE 10W30"
Controls
T35.105L Construction Telehandler
Engine
Electronic engine speed governor
Auxiliary pressure release
Standard coupler + pressure release on control valve spool
Service brake
Pedal-activated wet multi-disk on front axle
Eco mode
Eco mode switch
Front auxiliary
Variable thumbwheel on joystick
Boom raising / lowering
Joystick electronic
SHS mode
SHS mode switch
Starting
Key-type starter switch and shutdown.
Boom exension /retraction
Variable thumbwheel on joystick
Secondary brake
Passive brake
Speed range and Forward/reverse drive
Switch for hydrostatic motor and switch on joystick or lever for FNR
Steering
Proportional hydraulic steering via a conventional steering wheel
Environmental
T35.105L Construction Telehandler
Level of acoustic power (LWA)
106.00
Whole body vibration (EN 13059)
1.30
Operator noise level (LpA) (EN 12053)
76.00
Safety
T35.105L Construction Telehandler
Seat belt, standard
Should always be worn when operating the machine
Rated load capacity charts, standard
"Attached inside the cab. Provide rated load capacities for loads and attachments."
Grab handles, standard
"Should always be used when entering/exiting the telescopic"
Front and rear work lights, standard
Use for indoor and low light operation
Boom stop, standard
Use for servicing if boom is raised
Parking brake, standard
Always set brake when leaving the machine
Rear window, standard
For emergency exit
Back-up alarm, standard
"For use in jobs with low visibility. Alarm sounds when operated in reverse."
Emergency button, standard
Switches off the engine and blocks boom movements.
Fully enclosed operator cab. standard
"Enclosed operator cab. Meets SAE-J1040 and ISO 3471 for Roll Over Protective Structure (ROPS) and SAE-J1043 and ISO 3449 for Falling Objects Protection Structure (FOPS)."
Electrical
T35.105L Construction Telehandler
Starter
2.70
Alternator
140.00
Battery
110.0
Dimensions
T35.105L Construction Telehandler
Overall length (to forks tip)
6276.00 MM
Overall length (to forks face)
5071.00 MM
Overall length (to headstock pin)
4658.00 mm MM
Overall length (to front tyres / Stabilizers (when equipped)
4192.00 MM
Overall height (with rotating beacon)
2584.00 MM
Overall height (with roof wiper)
2430.00 MM
Height back of the machine
1941.00 MM
Ground clearance
415.00 MM
Length - Front axle to forks face
1422.00 MM
Wheelbase
2850.00 MM
Length - Rear axle to machine rear
799.00 MM
Operator cab outside width
930.00 MM
Track width
1862.00 MM
Width over standard tyres
2264.00 MM
External turning radius (at tyres)
3765.00 MM
Internal turning radius (cab)
1245.00 MM
External turning radius (with forks spaced 1040 mm ext.)
5025.00 MM
Carriage rotation angle
143.00
Engine
T35.105L Construction Telehandler
Number of Cylinders
3.409
Crankshaft ventilation
Close breathing
Make / Model
Bobcat D34
Rated speed
2400.00 RPM
Stroke
113.00 MM
Bore
98.00 MM
Maximum torque at 1400 rpm
430.00
Cooling
COOLANT
Air filter
Dry replaceable cartridge with safety element
Fuel
"Diesel fuel low Sulphur - EN 590 : 2013 -ASTM D975C-15 Grade 1D or 2D S15"
Rated power (ISO 14396)
74.00 KW
Displacement
4.40 L
Lubrication
Gear pump pressure
Ignition
Diesel compression
Weights
T35.105L Construction Telehandler
Unladen operating Weight (24" tyres)
7400.00 KG
Unlade operating Weight on front axle (24" tyres)
3000.00 KG
Unladen operating Weight on rear axle (20" tyres)
4350.00 KG
Unladen weight (24" tyres)
7210.00 KG
Unladen operating Weight (20" tyres)
7300.00 KG
Max ground Pressure on tyres-hard soil
11.0
Unladen weight (20" tyres)
7110.00 KG
Unladen operating Weight on rear axle (24" tyres)
4400.00 KG
Unlade operating Weight on front axle (20" tyres)
2950.00 KG
Instruments
T35.105L Construction Telehandler
Instruments
yes
Engine RPM
yes
Total operating hours
yes
Job hours
yes
Boom angle
yes
Vehicle speed
yes
Fuel gauge
yes
Engine coolant temperature gauge
yes
Front and rear wheel alignment status on screen
yes
Headlight full beam
yes
Headlight low beam
yes
Position lights
yes
Left and right turn
yes
Trailer turn
yes
Parking brake
yes
Longitudinal stability level
yes
Windscreen wipers
yes
Work lights
yes
Flashing warning light
yes
Hazard warning lights
yes
Gear Speed choice
yes
Hydraulic function lock
yes
Rear fog lights
yes
Heater fan
yes
Hydraulic fluid over-temperature
yes
Engine coolant over-temperature
yes
Low oil pressure
yes
Battery not charging
yes
Longitudinal stability alarm
yes
Serviceability
T35.105L Construction Telehandler
Serviceability
yes
Air cleaner
yes
Fuel filter
yes
Engine oil filter
yes
Engine oil dipstick
yes
Starter
yes
Alternator
yes
Glass washer fluid
yes
Fuses, diodes and relays
yes
ISL control box
yes
T35.105L Construction Telehandler
TL25.60 Construction Telehandler
Compare
TL30.60 Construction Telehandler
Compare
TL30.70 Construction Telehandler
Compare
TL35.70 Construction Telehandler
Compare
T36.120SL Construction Telehandler
Compare
T40.180SLP Construction Telehandler
Compare
T41.140SLP Construction Telehandler
Compare

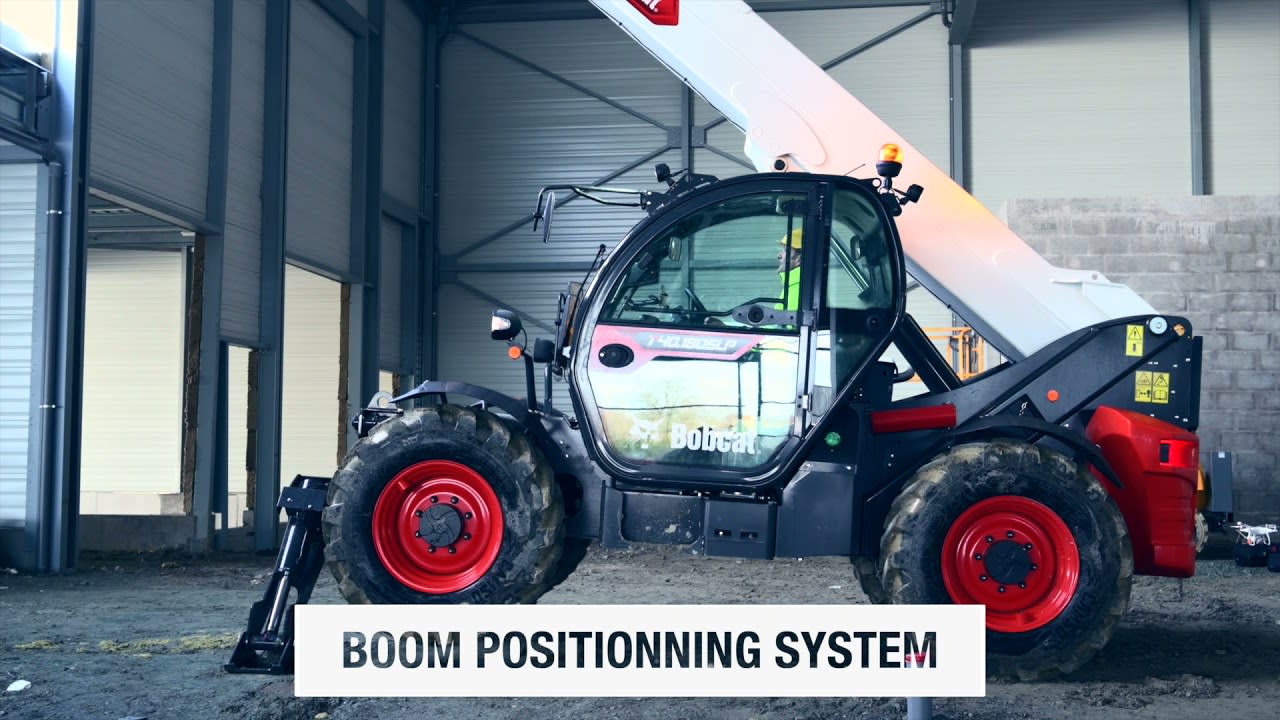

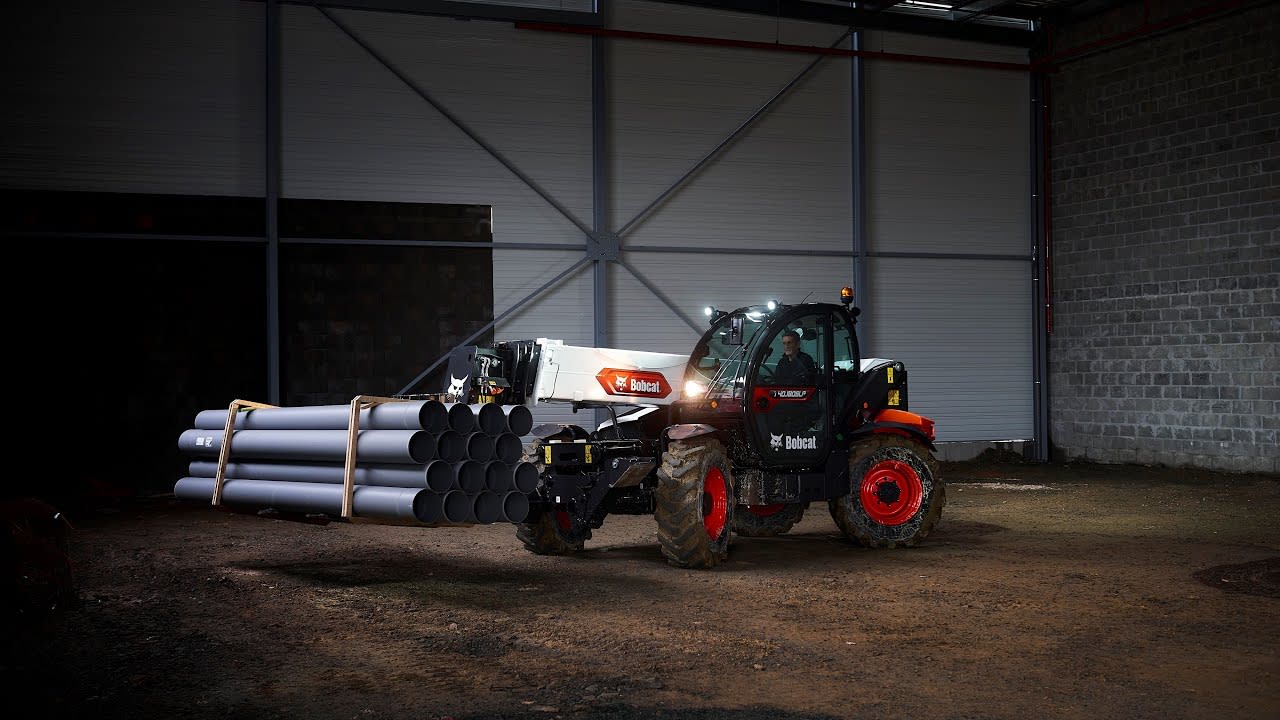

T35.105L Video Gallery
